Aluminium 5086 Bar and Rods

Neil Metals is a trusted manufacturer and supplier of Aluminium 5086 Bars and Rods, proudly based in Kolkata, India. These bars and rods are celebrated for their impressive strength, outstanding corrosion resistance, and excellent weldability, making them perfect for marine and structural applications. Crafted to meet ASTM B211 and other international standards, our Aluminium 5086 products come in a variety of sizes and finishes, customized to meet the demands of various industries. At Neil Metals, we deliver precision-engineered bars and rods that excel in environments where they face saltwater, chemicals, and mechanical stress.

Aluminum 5086 Rods Dealer in Kolkata, Aluminium 5086 Round Bars Manufacturer in Kolkata, Aluminium 5086 Alloy Square Bars Supplier in Kolkata, UNS A95086 Aluminum Alloy Flat Bars Size Chart, 5086 Al Rectangular Bars Supplier in India, Aluminum 5086 Bars Price List in Kolkata, Aluminium 5086 Round Bars Exporter Manufacturer in India, Stockist of 3.3545 Aluminium Alloy Round Bars in India

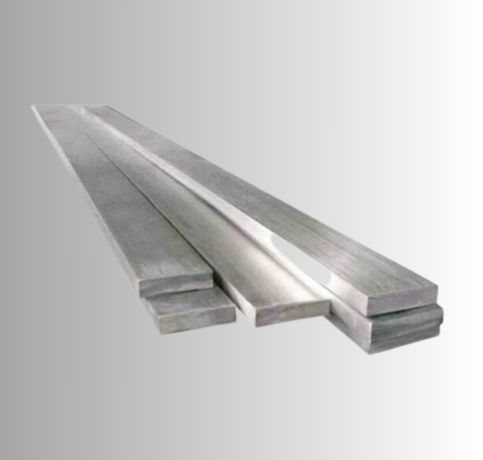

Aluminium 5086 Rectangular Bars

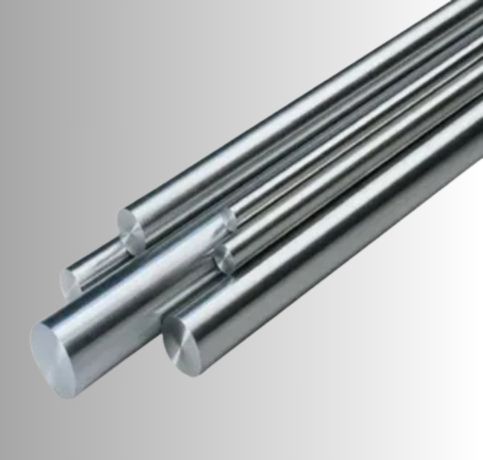

Aluminium 5086 Round Bars

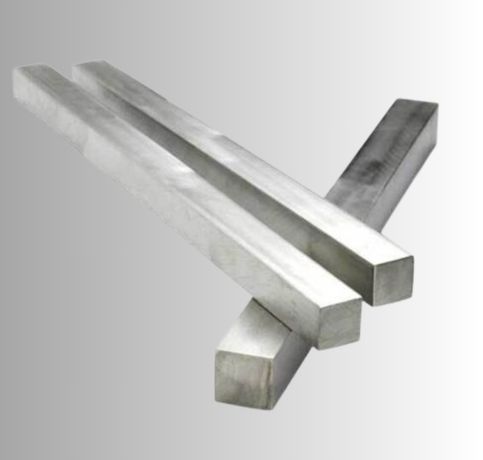

Aluminium 5086 Square Rods

What is Aluminium 5086 Bar and Rods?

Aluminium 5086 is a high-magnesium alloy that isn’t heat-treatable, primarily made up of magnesium (3.5–4.5%), aluminium (the balance), along with small amounts of chromium, iron, manganese, and silicon. This alloy boasts a tensile strength ranging from 270 to 350 MPa, a yield strength of about 125 MPa, and an elongation of 12 to 20%, depending on the temper. Renowned for its exceptional corrosion resistance, especially in marine settings, Aluminium 5086 retains its mechanical properties even after welding and cold working, making it suitable for a wide range of structural and load-bearing applications.

Aluminium Alloy 5086 Rectangular Bars Supplier in Kolkata, Aluminum Alloy 5086 Rods Exporter in India, Aluminium 5086 Round Bars Stockist in Kolkata, UNS A95086 Aluminum Hex Bars Supplier in India, DIN 3.3545 Al Cold Drawn Round Bars Distributor in Kolkata, Aluminium 5086 Rods Stockist India, Aluminum 5086 Rods Size Chart in India, Aluminium Alloy 5086 Solid Round Bars India, 5086 Aluminium Square Bar Supplier in Kolkata

Aluminium 5086 Bar and Rods Specification

Aluminium Alloy	ASTM B211, B211, B565, B316 5082, AMS 4121
Standard	ASTM, ASME, AMS, GB/T, JIS
Aluminium Round Bar Temper	O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Aluminium Bar Form	Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish
Aluminium Round Bar Diameter	0.1-600mm,etc
Aluminium Hexagonal Bar	0.1-600mm,etc
Aluminium Angle Bar Size	0.5mm40mm40mm-20mm400mm400mm
Aluminium Flat Bar Thickness	0.1-600mm,etc
Aluminium Flat Bar Size	1-2500mm, etc
Aluminium Round Bar Length	1-12m, Random, Fix & Cut Length or as per clients’ requirement
Aluminium Bar	Bright, Polish & Black

Chemical Compositions of Aluminium 5086 Bar

GRADE	Si	Ir	Cu	Mn	Mg	Cr	Zn	Ti	Others, each	Others, total	Al
5086	0.4	0.5	0.1	0.20-0.70	3.5-4.5	0.05-0.25	0.25	0.15	0.05	0.15	Balance

Aluminium 5086 Bar and Rods Mechanical Properties

Properties	Proof Stress	Tensile Strength	Hardness Brinell	Elongation
Metric	125 Min MPa	275 – 350 MPa	75 HB	12 Min %

Aluminium 5086 Bar Equivalent Grades

European Standard	OLD	WNr	UNS	ISO	USA (AA)	GERMANY (DIN)
AW-AlMg4	AG4MC	3.3545	A95086	AlMg4	5086	AlMg4Mn

You Need Our Support, to Have Any Projects?

Test Certificate

Why Neil Metals?

Packaging

Aluminium 5086 Bar and Rods Size Chart

Size in mm	Average Weight
Size in mm	KG/MTR	KG/FT
10	0.62	0.18
12	0.90	0.30
14	1.20	0.40
16	1.60	0.50
18	2.00	0.60
20	2.50	0.80
22	3.00	0.90
24	3.56	1.08
25	3.90	1.20
28	4.80	1.50
30	5.55	1.69
32	6.30	1.90
34	7.14	2.18
36	8.00	2.44
40	9.90	3.00
45	12.49	3.81
50	15.40	4.70
56	19.34	5.89
60	22.20	6.80
63	24.47	7.46
63.5	24.86	7.58
65	26.05	7.94
70	30.20	9.20
73	32.86	10.00
75	34.72	10.58
78	37.51	11.43
80	39.50	12.00
83	42.47	12.95
85	44.55	13.58
90	50.00	15.20
92	52.19	15.91
93	53.39	16.27
95	55.65	16.95
100	61.66	18.79
105	67.98	20.72
110	74.60	22.74
115	81.64	24.88
125	96.34	29.36

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Aluminium 5086 Bar and Rods Types

Aluminum 5086 Flat Rods Exporter in Kolkata, Aluminium 5086 Flat Bars India, 3.3545 Aluminum Hollow Bar Manufacturer in India, UNS A95086 Aluminium Alloy Round Bars Distributor in India, Al 5086 Polished Rods Dealer in Kolkata, 5086 Aluminum Bars Supplier in India, Aluminium Alloy 5086 Hollow Rods Price List in Kolkata, Aluminum 5086 Rectangular Bars Supplier in India, Aluminium Alloy 5086 Hexagonal Bars Exporter in Kolkata, Aluminium 5086 T-Bars Exporter in India

Aluminium 5086 Bar and Rods Uses

Aluminium 5086 Bars and Rods find extensive use in shipbuilding, offshore platforms, tankers, pressure vessels, and military vehicles, thanks to their resistance to saltwater corrosion and impressive strength-to-weight ratio. They’re also utilized in cryogenic equipment, transportation systems, and architectural structures. The alloy’s remarkable weldability and resistance to stress corrosion cracking make it perfect for fabrications that require long-lasting durability and structural integrity. Lightweight yet robust, Aluminium 5086 is a versatile choice for both industrial and marine engineering applications, delivering reliability and performance even in the toughest conditions.
