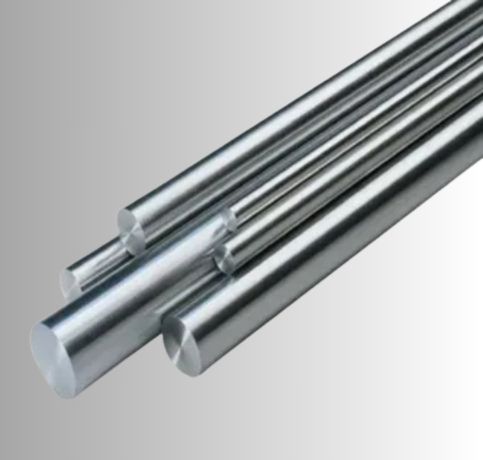

Neil Metals, located in Kolkata, India, has earned a solid reputation as a reliable manufacturer and supplier of Aluminium 5083 bars and rods. These products are celebrated for their high strength and resistance to corrosion, making them perfect for marine and structural applications. With cutting-edge production capabilities and a strong commitment to international quality standards, Neil Metals offers Aluminium 5083 in a variety of sizes and tempers to meet the diverse needs of industries like shipbuilding, transportation, and offshore engineering. Their dedication to precision, durability, and timely delivery positions Neil Metals as a trustworthy partner for clients looking for robust and high-performance aluminium bar and rod solutions, both in India and around the globe.
Aluminium 5083 bars and rods are primarily made up of aluminium (about 92–93%), magnesium (4.0–4.9%), manganese (0.4–1.0%), and chromium (0.05–0.25%), along with small amounts of iron, silicon, and zinc. This alloy, which isn’t heat-treatable, boasts a tensile strength ranging from 270–350 MPa, a yield strength of 125–290 MPa, and an elongation of 10–20%, depending on the temper. What sets Aluminium 5083 apart is its outstanding corrosion resistance in marine and chemical environments, along with good weldability and excellent performance in both cryogenic conditions and high-stress applications.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |
| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |
| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Aluminium Bar | Bright, Polish & Black |
| Weight% | Al | Si | Fe | Cu | Mn | Cr | Mg | Ti | Zn | Other Each | Others Total |
| 5083 | Bal | 0.40 max | 0.40 max | 0.10 max | 0.40 / 1.0 | 0.05 / 0.25 | 4.0 / 4.90 | 0.15 max | 0.25 max | 0.05 max | 0.15 max |
| Properties | Proof Stress | Tensile Strength | Hardness Brinell | Elongation |
| Metric | 125 Min MPa | 275 – 350 MPa | 75 HB | 12 Min % |
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg4,5Mn0,7 | AG4,5MC | 3.3547 | A95083 | AlMg4,5Mn0,7 | 5083 | AlMg4,5Mn |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Yes, Aluminium 5083 bars are fully recyclable. Recycling preserves the material's properties, reduces energy consumption, and minimizes environmental impact, making it an eco-friendly choice for sustainable manufacturing.
To maintain Aluminium 5083 bars, regularly clean them with mild detergent and water to prevent corrosion. Avoid abrasive materials, and apply protective coatings if exposed to harsh environments for enhanced durability.
When installing Aluminium 5083 bars and rods, consider proper welding techniques, corrosion protection, accurate measurements, compatibility with other materials, and ensuring proper handling to avoid surface damage or distortion.
In marine engineering, Aluminium 5083 bars and rods are commonly used for boat hulls, decks, and structural frames due to their impressive resistance to seawater corrosion. In the transportation sector, they find applications in railway cars, truck bodies, and tankers, thanks to their strength and lightweight nature. The defense and aerospace industries also utilize 5083 for armor plating and structural components that must withstand extreme conditions. Additionally, it’s used in offshore platforms, chemical tanks, and pressure vessels. With its excellent weldability, formability, and corrosion resistance, Aluminium 5083 is the go-to choice for applications that demand durability and performance in challenging environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
