Neil Metals, based in Kolkata, India, stands out as a leading manufacturer and supplier of Aluminium 5052 bars and rods. They’re well-known for crafting top-notch aluminium products that boast impressive corrosion resistance and remarkable mechanical strength. Catering to a variety of sectors like marine, automotive, and chemical processing, Neil Metals guarantees that their Aluminium 5052 bars and rods adhere to strict quality standards and meet customer needs. Their dedication to cutting-edge manufacturing methods and dependable delivery has made them a go-to partner for clients looking for robust, high-performance aluminium solutions that can thrive in challenging environments, both locally and globally.
Aluminium 5052 bars and rods are primarily made up of aluminium (about 97.25%), along with magnesium (2.2–2.8%) and trace amounts of chromium (0.15–0.35%), which boost their corrosion resistance and strength. This alloy showcases a tensile strength ranging from 228 to 280 MPa, a yield strength between 193 and 230 MPa, and an elongation of 10 to 20%, depending on the temper. Renowned for its excellent resistance to both marine and industrial environments, Aluminium 5052 also provides good weldability, moderate to high strength, and outstanding fatigue resistance.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |

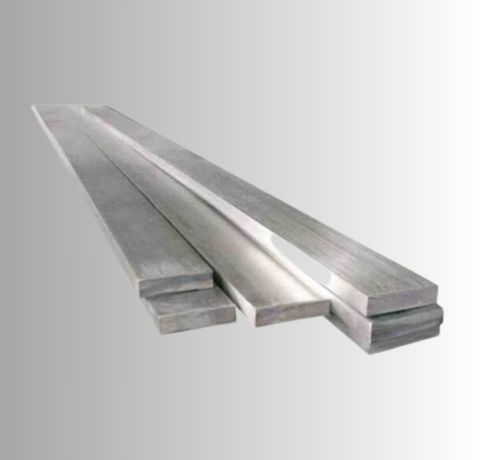

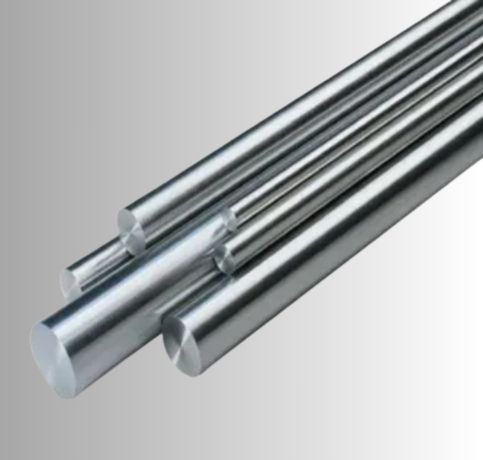

| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |
| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Aluminium Bar | Bright, Polish & Black |
| Mg | Mn | Si | Cu | Fe | Cr | Zn | Ti | Cu | Other (Each) | Others (Total) | Al |
| 2.60 – 3.60 | 0.0 – 0.50 | 0.0 – 0.40 | 0.0 – 0.40 | 0.0 – 0.30 | 0.0 – 0.20 | 0.0 – 0.15 | 0.0 – 0.10 | 0.0 – 0.05 | 0.0 – 0.05 | 0.0 – 0.15 | Balance |
| Proof Stress | Tensile Strength | Elongation at 50 mm | Hardness Brinell |
| 80 Min MPa | 190 – 260MPa | 12 Min % | 52 HB |
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg2,5 | AG2,5C | 3.3523 | A95052 | AlMg2,5 | 5052 | AlMg2,5 |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Yes, Aluminium 5052 bars can be welded. They offer good weldability using techniques like TIG or MIG welding, making them suitable for a variety of applications in marine and structural industries.
Consider proper handling to prevent surface damage, use appropriate welding techniques, ensure corrosion protection for harsh environments, choose compatible fasteners, and account for temperature fluctuations during installation for optimal performance.
Yes, Aluminium 5052 bars and rods can be used for structural applications due to their excellent corrosion resistance, high strength, and formability, making them suitable for marine, automotive, and industrial uses.
In the marine sector, Aluminium 5052 bars and rods are widely utilized for boat hulls, fuel tanks, and various marine equipment, thanks to their exceptional resistance to saltwater corrosion. In the automotive industry, they find applications in fuel systems and structural components. The chemical sector benefits from Aluminium 5052’s ability to withstand a range of chemicals, making it perfect for storage tanks and pipes. Moreover, this alloy is also employed in architectural projects, pressure vessels, and general engineering, where durability and corrosion resistance are crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
