Neil Metals, based in Kolkata, India, has earned a solid reputation as a reliable manufacturer and supplier of high-performance Aluminium 2024 T3511 Bars and Rods. They serve a variety of industries, including aerospace, automotive, defense, and engineering. Known for their commitment to quality, precision, and compliance with international standards, Neil Metals delivers Aluminium 2024 T3511 products that boast an impressive strength-to-weight ratio and outstanding fatigue resistance. With state-of-the-art infrastructure, skilled technical support, and dependable supply capabilities, they guarantee timely deliveries and tailored solutions. Their Aluminium 2024 T3511 bars and rods are the go-to choice for critical applications where structural integrity and performance are essential, especially in high-stress situations.
Aluminium 2024 T3511 Bars and Rods are aluminum-copper alloys made up of roughly 90.7% aluminum, 3.8–4.9% copper, 1.2–1.8% magnesium, and 0.3–0.9% manganese. The T3511 temper signifies that the material has undergone solution heat treatment, stress relief through stretching, and natural aging. These bars exhibit remarkable mechanical properties, including a tensile strength of about 470–500 MPa and a yield strength of around 320–360 MPa, along with good fatigue resistance. While they may not be as corrosion-resistant as some other aluminum grades, their exceptional strength and machinability make them perfect for aerospace and structural applications that demand high load-bearing capacity.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |

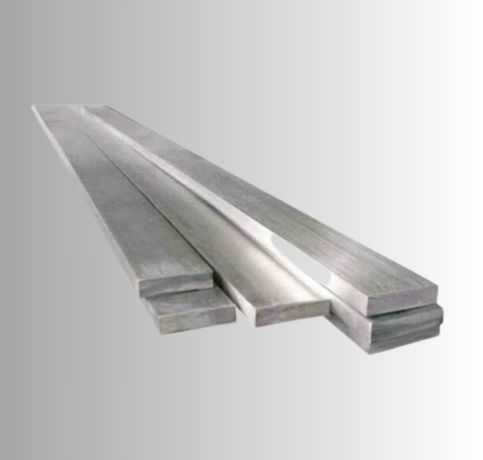

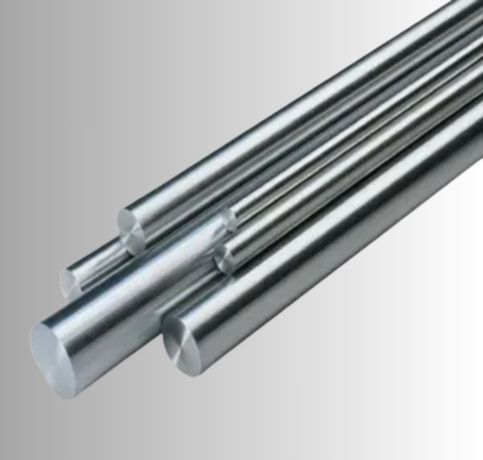

| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |
| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Aluminium Bar | Bright, Polish & Black |
| Grade | Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other |
| min. | Bal | 3.80 | 0.30 | 1.20 | ||||||
| max. | Bal | 0.50 | 0.50 | 4.90 | 0.90 | 1.80 | 0.10 | 0.25 | 0.15 | 0.05 |
| Temper | Tensile Strength | Yield Strength | Elongation |
| KSI | KSI | % | |
| (annealed) | 32 | 14 | 12 |
| T3 | 63 | 42 | 15 |
| STANDARD | UNS | WERKSTOFF NR. |
| Aluminium 2024 T3511 | A92024 | 3.1355 |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Aluminium 2024 T3511 is generally not recommended for welding due to its susceptibility to cracking and reduced strength after welding. However, specialized techniques like TIG welding and using filler materials can be employed with caution.
Yes, Aluminium 2024 T3511 bars are recyclable. Aluminium is highly recyclable without losing quality, making it an eco-friendly material for sustainable manufacturing and reducing environmental impact.
Aluminium 2024 T3511 is prone to corrosion, particularly in harsh environments with high humidity or exposure to saltwater. It is highly susceptible to pitting and stress corrosion cracking, though protective coatings can help mitigate this.
Aluminium 2024 T3511 Bars and Rods find extensive use in scenarios where high strength, fatigue resistance, and weight reduction are crucial. In the aerospace sector, they are utilized in aircraft fuselage structures, wing skins, and various support components. The automotive industry incorporates them into performance parts like suspension components and chassis elements. Additionally, they are present in military hardware, transportation systems, and precision machined components. Although their corrosion resistance is not as high as that of other aluminum alloys, they excel in high-stress environments when properly protected or coated, making them a preferred choice for demanding applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
