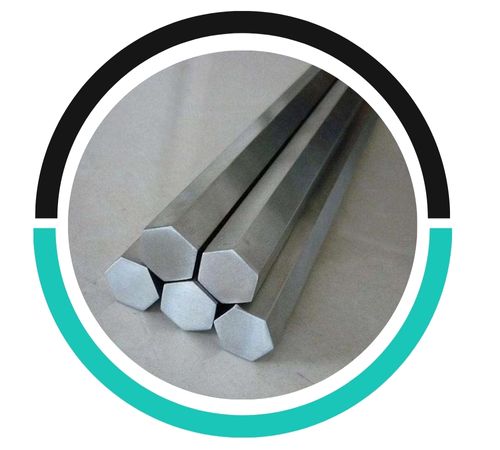

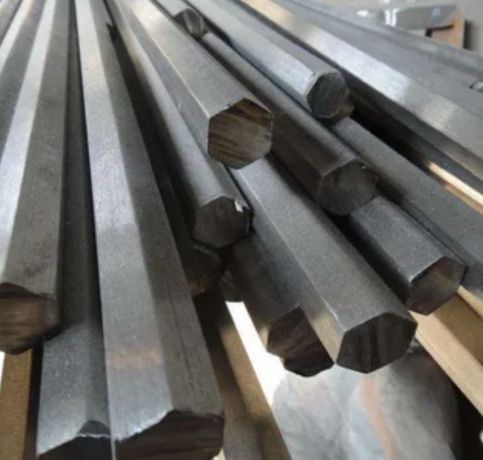

Neil Metals, located in Kolkata, India, has built a solid reputation as a reliable manufacturer and supplier of top-notch Alloy Steel Hex Bars. These bars are celebrated for their precision engineering and consistent performance, crafted with cutting-edge technology and rigorous quality control. Catering to a diverse array of industries, Neil Metals ensures that their products meet both national and international standards, guaranteeing durability, reliability, and customer satisfaction. With a robust supply chain and a commitment to timely delivery, the company has established itself as a leader in the alloy steel market, both domestically and globally.
Alloy Steel Hex Bars are primarily made from iron and carbon, with additional elements like chromium, molybdenum, manganese, and nickel to boost their strength and resistance to corrosion. These bars are known for their impressive tensile strength, good ductility, and outstanding toughness. Depending on the grade, their mechanical properties include tensile strengths ranging from 700 to 1100 MPa and yield strengths between 400 to 800 MPa. They also boast excellent machinability and wear resistance, making them ideal for demanding applications. Their characteristics are fine-tuned through precise heat treatment processes and specific alloying combinations.
| Specifications | ASTM A182, ASME SA182 |
|---|---|
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Range | 5mm to 500mm Dia in 100mm to 6000mm Length |
| Diameter | 10 mm To 200 mm |
| Thickenss | 0.5mm to 500mm Diameter |
| High Speed Steel (HSS), HCHCR & OHNS in Grade | M2, M3, M35, M42, T-1, T-4, T-15, T-42, D2, D3, H11, H13, OHNS-01 & EN52 |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | 1000 mm Long To 6000 mm Long |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Element | C | Cr | Mn | Mo | P | S | Si | Ni |
| F5 | 0.15 Max | 4.0-6.0 | 0.30-0.60 | 0.44-0.65 | 0.035 Max | 0.030 Max | 0.50 Max | 0.50 Max |
| F1 | 0.15 Max | 3.0-5.0 | 0.30-0.60 | 0.40-0.50 | 0.035 Max | 0.030 Max | 0.50 Max | 0.50 Max |
| F22 | 0.05-0.15 | 2.00-2.50 | 0.30-0.60 | 0.90-1.10 | 0.035 Max | 0.040 Max | 0.50 Max | – |
| F91 | 0.08-0.12 | 8.0-9.5 | 0.30-0.60 | 0.85-1.05 | 0.020 Max | 0.010 Max | 0.20-0.50 | 0.40 Max |
| F9 | 0.15 Max | 8.0-10.0 | 0.30-0.60 | 0.90- 1.10 | 0.030 Max | 0.030 Max | 0.50- 1.00 | – |
| F11 | 0.10-0.20 | 1.00-1.50 | 0.40-0.65 | 0.44-0.65 | 0.025 Max | 0.040 Max | 0.50-0.80 | – |
| Grade | Tensile Strength (ksi) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (ksi) min |
| F9 | 415 | 30 | 205 |
| F5 | 275 | 485 | 20 |
| Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) |
| 7 x 7 | 0.337 | 19 x 19 | 2.479 | 38 x 38 | 9.916 |
| 8 x 8 | 0.44 | 20 x 20 | 2.747 | 40 x 40 | 10.988 |
| 9 x 9 | 0.556 | 21 x 21 | 3.029 | 42 x 42 | 12.114 |
| 10 x 10 | 0.687 | 22 x 22 | 3.324 | 45 x 45 | 13.906 |
| 11 x 11 | 0.831 | 24 x 24 | 3.956 | 48 x 48 | 15.822 |
| 12 x 12 | 0.989 | 25 x 25 | 4.292 | 50 x 50 | 17.168 |
| 13 x 13 | 1.161 | 26 x 26 | 4.642 | 53 x 53 | 19.29 |
| 14 x 14 | 1.346 | 28 x 28 | 5.384 | 55 x 55 | 20.774 |
| 15 x 15 | 1.545 | 30 x 30 | 6.181 | 60 x 60 | 24.723 |
| 16 x 16 | 1.758 | 32 x 32 | 7.032 | 65 x 65 | 29.015 |
| 17 x 17 | 1.985 | 34 x 34 | 7.939 | 70 x 70 | 33.65 |
| 18 x 18 | 2.225 | 36 x 36 | 8.9 | 75 x 75 | 38.629 |
Alloy steel hex bars are manufactured by hot rolling or forging alloy steel billets, followed by precision machining, annealing, and surface finishing to achieve the desired size, strength, and quality.
The best finishes for corrosion resistance in alloy steel hex bars and rods include zinc plating, chrome plating, electropolishing, and black oxide coating, as well as applying epoxy or powder coatings for additional protection.
Thanks to their strength, durability, and versatility, Alloy Steel Hex Bars find widespread use across various industries. They play a crucial role in constructing heavy machinery, automotive components, shafts, fasteners, and tools. In the oil and gas industry, they withstand harsh environments, while in aerospace, they deliver high performance under stress. Moreover, they are utilized in power plants, shipbuilding, and chemical processing due to their remarkable mechanical and anti-corrosive properties. Their uniform hexagonal shape makes them easy to handle and machine, which is why they are a popular choice for structural and precision applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
